Standard Portable Diesel Generator Single & Three Phase Silent 300kW 375KVA Rated Power Portable Electric Generator

Standard Portable Diesel Generator Single & Three Phase Silent 300kW 375KVA Rated Power Portable Electric Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Canopy: Customized
Warranty: 12 Months/1000 Hours
Type: Silent(super Silent)or Open, Silent, Etc, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Soundproof Canopy(Silent)
Control Panel: LCD Digital Display, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Output Type: AC Single/Three Phase
Controller: Deepsea/Smartgen/etc
Application: Indursty Bank Etc
Rated Voltage: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Product Name: Customizable PERKINS 300kW 375KVA Diesel Generators, For Household Use, Industrial Use, Hospital Use, And Construction Sites.
Color: Customers' Requirement
Frequency: 50/60HZ
Rated Power: 375kva
Engine: Original PERKINS
Cooling Method: Water-cooling System
Highlight:

300kW portable diesel generator

,

silent Perkins diesel generator

,

three phase electric generator
Basic Infomation
Place of Origin: China
Brand Name: PERKINS
Certification: CE
Model Number: 2206C - E13TAG3
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 500pcs per month
Product Description
Standard Portable Diesel Generator 300kW 375KVA
Our 300kW 375KVA BOBIG PERKINS diesel generator (Model: 2206C - E13TAG3) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 300kW (375KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard operation suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: 2206C - E13TAG3 PERKINS engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)375413
Power Rating (kW)300330
Frequency (Hz)50
Engine Model2206C-E13TAG3
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
PRP: Prime power is available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating applies for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
ModelBP413 (Open Type)BP413S (Silent Type)
Length (mm)33004500
Width (mm)11501400
Height (mm)21502250
Tank Capacity (L)690690
Engine Specifications
Engine Model & Manufacturer2206C-E13TAG3 (PERKINS)
Number of Cylinders6
Cylinder ArrangementVertical Inline
CycleFour Stroke
AspirationTurbocharged, Air-to-Air Charge Cooling
Bore x Stroke130 x 157 mm
Cubic Capacity12.5 L
Compression Ratio16.3:1
Prime Power/Speed348.9 kW/1500 rpm
Standby Power/Speed392.3 kW/1500 rpm
Governor TypeMechanical
Cooling SystemForce Water Cooling Cycle
Total Lubrication System Capacity32.5 L
Coolant Capacity (Engine Only)40.0 L
Fuel Consumption (100% Load)206 g/kWh @1500 rpm
Starter MotorDC 24V
Charge AlternatorDC 24V
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314F
Alternator Rated Power300kW/375kVA
Rated Voltage230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller (engine, generator, and controller are optional).
Warranty: BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. Free easy-damageable spare parts provided during guarantee period for quality-related issues.
Packaging & Shipping: Plywood case packaging, 10-15 working days delivery after receiving customer deposit.
Certifications
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.

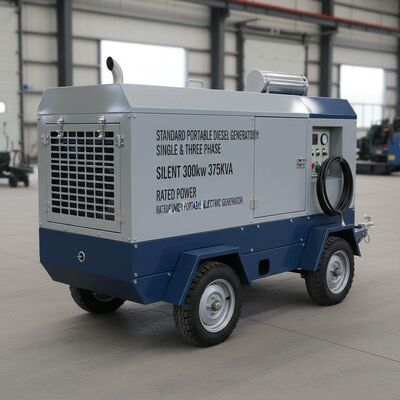

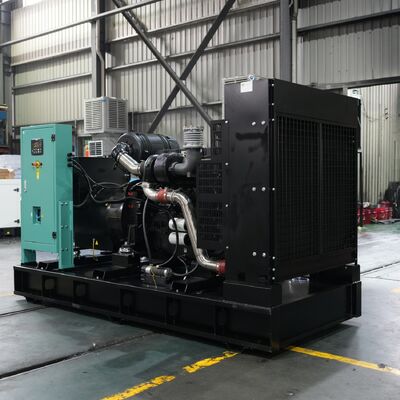

Standard Portable Diesel Generator Single & Three Phase Silent 300kW 375KVA Rated Power Portable Electric Generator 0Standard Portable Diesel Generator Single & Three Phase Silent 300kW 375KVA Rated Power Portable Electric Generator 1
Product Image

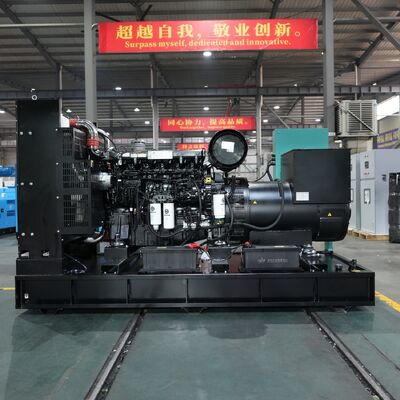

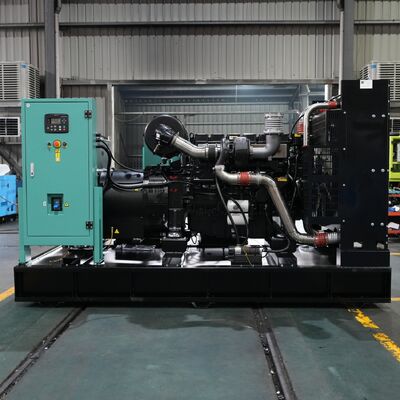

Standard Portable Diesel Generator Single & Three Phase Silent 300kW 375KVA Rated Power Portable Electric Generator 2
Frequently Asked Questions
Q: What is your MOQ, payment method, and delivery time?
A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.
Q: Which port do you use for export?
A: Fuzhou port, Fujian province or as customer request.
Q: Do you provide spare parts for maintenance?
A: Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Q: Can you offer parts if needed?
A: Yes, parts can be provided at any time, usually shipped within 3-5 days.
Q: Can voltage, frequency, tank capacity, phase and color be customized?
A: Yes, all specifications can be customized according to your needs.
Q: What is your distribution policy?
A: We welcome distributors worldwide and can issue authority certificates and sign agreements.
