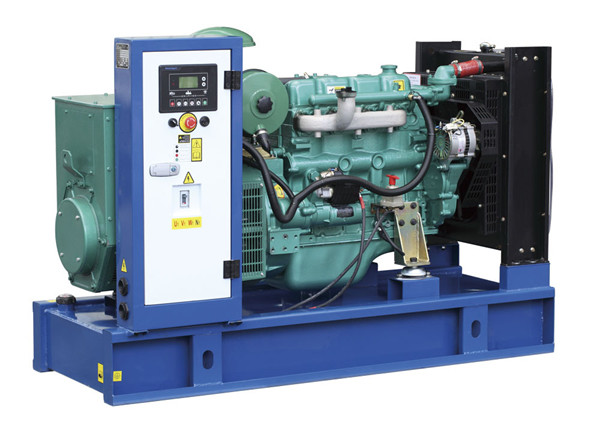

450kva 360kw Yuchai Power Generator

450kva 360kw Yuchai Power Generator
Features Gallery Product Description Request A Quote
Product Name:: 450kva 360kw YUCHAI Diesel Generator
Engine: YUCHAI Engine
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Controller: Smartgen,Deepsea,Comap AMF20,AMF25
Options: ATS,color,voltage,phase,tank Capacity,frequency
Warranty: 12 Months/1000 Hours
Delivery Time: 18-25days
Parts: Offer,not Limited In Warranty Time
Rated Voltage:: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Frequency:: 50/60HZ
High Light:

360kw yuchai power generator


450kva yuchai power generator

Basic Infomation
Place of Origin: CHINA
Certification: CE,ISO
Model Number: BYU500
Payment & Shipping Terms
Packaging Details: plywood case or Bubble Wrap
Delivery Time: 18-23DAYS
Supply Ability: 500SETS PER MONTH
Product Description

silent open type electric industrial 450kva 360kw yuchai power diesel generator set


1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.



Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.

MODEL BYU500 silent type Open type +ATS
Prime power (KW/KVA) 360KW/450KVA
Standby power (KW/KVA) 400KW/500KVA
General description
1. Engine: YC6T600L-D22 YUCHAI engine
2. Alternator:BW-5C STAMFORD TYPE
3. Controller: DEEPSEA/Smartgen
4. Electronic speed control
5.:Frequency: 50/60HZ
6. Rated speed: 1500rpm/1800rpm
7. 2*12V batteries, maintennance free type.
8. 24V charge dynamo.
9. Equipped with 10-12hours operation base tank
10. DIM: silent:4600*1500*2250mm ,open:3600*1500*2350mm
11. Nobise level: 69-72DB@7M ,if need lower noise level,please contact us.
12. Package:Plywood case
13. Radiator 50℃ max, fans are driven by belt with safety guard
14. Delivery time:10~15 working days after receiving customers' deposit
15. Equipped with industrial silencer and flexible exhaust hose.
16. Payment terms:TT,100%irrevocable L/C,tradeassurance,paypal,wester union
17. Manufacturing Standard:
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
18. Warranty:One year after installation/1500 running hours
19. Pakcing list:User manual of Engine, alternator, controller.
20. Weight: 4100kg
21. Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need
Engine specifications:
Engine model YC6T600L-D22
Number of cylinders 6
Cylinder arrangement Vertical in line
Cycle 4
Aspiration Turbo Aftercooled
Bore×Stroke(mm×mm) 159×159
Displacement (Liter) 18.9
Compression Ratio 13.9:1
Prime power/speed (kW/RPM) 401/1500RPM
Standby power/speed (kW/RPM) 440/1500RPM
Speed governor electronic
Cooling system Water cooling( Aftercooled)
Coolant capacity (engine only) (L) 30
Steady speed droop (%) ±0.25%
Total lubrication system capacity (L) 50
Oil consumption (g/kw.h) 0.15% of fuel consumption
Fuel consumption at 100% load (g/kw.h) 220
Fuel consumption at 75% load (g/kw.h)
Fuel consumption at 50% load (g/kw.h)
Starter motor 24V
Dyanmo 24V
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS1359
Alternator model BW-5C
Exciter type Single bearing, Brushless, Self-excited
Rated output prime power(KVA/KW) 400kW
Rated speed 1500 RPM
Rated frequency 50 Hz
Phase 3
Rated voltage 220/380V(can be made accord with your need)
Current(A) 547
Power factor 0.8
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Insulation grade H
Protection grade IP23
