The 8KW 10KVA YD380D Yangdong Diesel Generator is a compact and reliable power solution designed for a variety of applications. Equipped with a Yangdong diesel engine, this generator provides a continuous power output of 8KW (or 10KVA), making it suitable for a range of power needs.
Operating at a frequency of 50Hz, this generator is designed to meet common international power standards. Its three-phase capability ensures stable and balanced power distribution, making it suitable for both residential and light commercial applications.

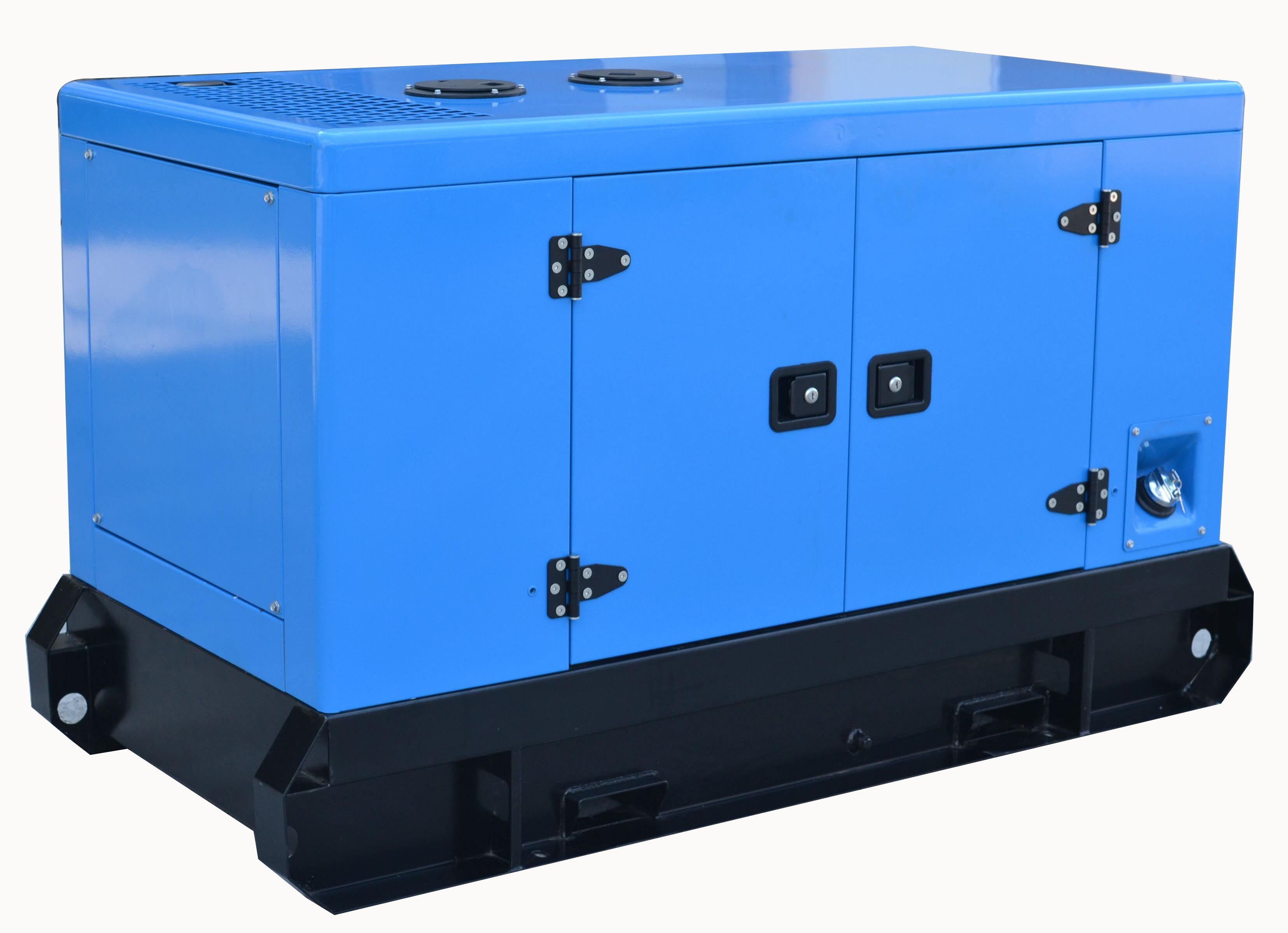

The soundproof enclosure reduces noise levels during operation, making this generator ideal for environments where quiet operation is essential. The enclosure also offers protection against weather elements, extending the generator's lifespan and ensuring consistent performance in various conditions.
With 8KW power output and 10KVA capacity, this diesel generator is well-suited for residential backup power, small businesses, and essential equipment operation.
Overall, the 8KW 10KVA YD380D Yangdong Diesel Generator with its soundproof enclosure and reliable engine offers a dependable power solution for various applications. Its balance of power output, sound reduction, and protection features makes it a practical choice to ensure continuous and stable power supply in different settings.
Products Features:
1.We cooperate with famous diesel engine Powered by original Yuchai engine.
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE
| Gensets | Technical Data of Diesel Engine(50hz/1500rpm) | Alternator(50hz/1500rpm) | Size | ||||||
| Model | Gensets power(KW/KVA) | Engine model |
Engine power(kw) | BOBIG | Open type (MM) | sounproof type (MM) | |||
| Prime | Standby | Prime | |||||||
| BY11 | 8 | 10 | 9 | 11 | YD380D | 10 | BW-164B | 1150*610*1100 | 1750*850*1030 |
| BY11 | 8 | 10 | 9 | 11 | YD385D | 11 | BW-164B | 1150*610*1100 | 1750*850*1030 |
| BY14 | 10 | 13 | 11 | 14 | YD480D | 14 | BW-164C | 1350*610*1160 | 1850*850*1050 |
| BY17.875 | 12 | 15 | 13 | 17 | YD4KD | 15 | BW-164D | 1350*610*1160 | 1900*850*1050 |
| BY18 | 13 | 16 | 14 | 18 | YND485D | 17 | BW-164D | 1350*610*1160 | 1900*850*1050 |
| BY21 | 15 | 19 | 17 | 21 | YND490D | 20 | BW-184ES | 1350*610*1160 | 1900*850*1050 |
| BY22 | 16 | 20 | 18 | 22 | YSD490D | 21 | BW-184ES | 1350*610*1160 | 1900*850*1050 |
| BY25 | 18 | 23 | 20 | 25 | Y490D | 24 | BW-184E | 1460*700*1160 | 2000*850*1050 |
| BY28 | 20 | 25 | 22 | 28 | Y495D | 27 | BW-184F | 1460*700*1160 | 2000*850*1050 |
| BY28-1 | 20 | 25 | 22 | 28 | Y4100D | 31.5 | BW-184F | 1550*610*1170 | 2100*850*1070 |
| BY33 | 24 | 30 | 26 | 33 | Y4102D | 33 | BW-184G | 1570*610*1170 | 2100*850*1070 |
| BY41 | 30 | 38 | 33 | 41 | Y4105D | 38 | BW-184H | 1650*610*1170 | 2200*850*1150 |
| BY47 | 34 | 43 | 37 | 47 | Y4110D | 43 | BW-184J | 1650*610*1170 | 2200*850*1150 |
| BY41 | 30 | 38 | 33 | 41 | Y4102ZD | 40 | BW-184H | 1800*710*1170 | 2300*880*1150 |
| BY48 | 35 | 44 | 39 | 48 | Y4102ZLD | 48 | BW-224C | 1850*730*1350 | 2300*880*1150 |
| BY55 | 40 | 50 | 44 | 55 | Y4105ZLD | 55 | BW-224D | 1850*730*1350 | 2500*930*1200 |
| BY69 | 50 | 63 | 55 | 69 | YD4EZLD | 63 | BW-224E | 1850*730*1350 | 2500*930*1200 |
| BY83 | 60 | 75 | 66 | 83 | Y4110ZLDA | 72 | BW-224F | 1850*730*1350 | 2500*950*1200 |
| BY88 | 64 | 80 | 70 | 88 | Y4110ZLD | 80 | BW-224G | 1850*730*1350 | 2500*950*1200 |
| BY99 | 72 | 90 | 79 | 99 | YD4GZLD | 90 | BW-274C | 1850*730*1350 | 2500*950*1200 |
