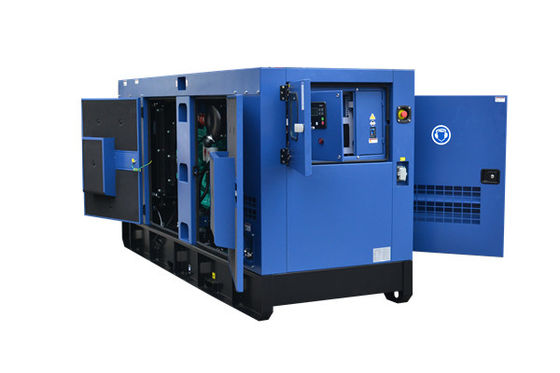

Low price sell canopy open 50kva 40kw yangdong diesel engine electric generator from factory
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.
| BOBIG POWER YANGDONG DIESEL GENERATOR | ||||||||
| MODEL | BY55 | silent type | Open type | +ATS | ||||
| Prime power (KW/KVA) | 40KW/50KVA | |||||||
| Standby power (KW/KVA) | 44KW/55KVA | |||||||
| General description | ||||||||
| 1. Engine: Y4102ZLD YANGDONG | ||||||||
| 2. Alternator:BW-224D STAMFORD TYPE | ||||||||
| 3. Controller: DEEPSEA/Smartgen | ||||||||
| 4.:Frequency: 50/60HZ | ||||||||
| 5. Voltage: 110,115,220,230,240,380,400,415v…… | ||||||||
| 6. Rated speed: 1500rpm/1800rpm | ||||||||
| 7. Tank:Equipped with 8-12hours base tank | ||||||||
| 8. Nobise level: Silent type 65-75DB@7M ,Open type:Over 80DB@7M | ||||||||
| 9. Package:BUBBLE WRAP PACKAGES / Plywood case | ||||||||
| 10. Delivery time:18-23 days under 3*40HQ container, | ||||||||
| 25-30days for over 4*40HQ containers | ||||||||
| 11. Payment terms:TT,100%irrevocable L/C,tradeassurance,paypal,wester union | ||||||||
| 12. Warranty:One year /1500 running hours | ||||||||
| 13. Pakcing list:User manual of Engine, alternator, controller. | ||||||||
| 14. Dimension: silent :2200*890*1200mm ,open:1860*620*1170mm | ||||||||
| 15. Weight: silent: 950kg, open: | ||||||||
| 16. Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need | ||||||||
| Engine specifications: | ||||||||
| Engine model | Y4102ZLD | |||||||
| Number of cylinders | 4 | |||||||
| Way of burning | Direct injection | |||||||
| Air intake mode | turbocharge | |||||||
| Bore×Stroke(mm×mm) | 102×118 | |||||||
| Displacement (Liter) | 3.87 | |||||||
| Compression Ratio | 18:01 | |||||||
| Prime power/speed (kW/RPM) | 48/1500RPM | |||||||
| Standby power/speed (kW/RPM) | 53/1500RPM | |||||||
| Speed governor | mechanical | |||||||
| Cooling method | Forced water cooling | |||||||
| Lubricating method | Pressure splash composite | |||||||
| Coolant capacity (engine only) (L) | 10 | |||||||
| Oil consumption (g/kw.h) | ≤2.04 | |||||||
| Fuel consumption at 100% load (g/kw.h) | ≤225 | |||||||
| Fuel consumption at 75% load (g/kw.h) | ||||||||
| Fuel consumption at 50% load (g/kw.h) | ||||||||
| Starter motor | ||||||||
| Dyanmo | ||||||||
| ALTERNATOR SPECIFICATION: | ||||||||
| Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS1359 | ||||||||
| Alternator model | BW-224D | |||||||
| Exciter type | Single bearing, Brushless, Self-excited | |||||||
| Rated output prime power(KVA/KW) | 40kW | |||||||
| Rated speed | 1500 RPM | |||||||
| Rated frequency | 50 Hz | |||||||
| Phase | 3 | |||||||
| Rated voltage | 380/220 V(can be made at your requests) | |||||||
| Current(A) | 76 | |||||||
| Power factor | 0.8 | |||||||
| Voltage adjust range | ≥5% | |||||||
| Voltage regulation NL-FL | ≤±1% | |||||||
| Insulation grade | H | |||||||
| Protection grade | IP23 | |||||||
