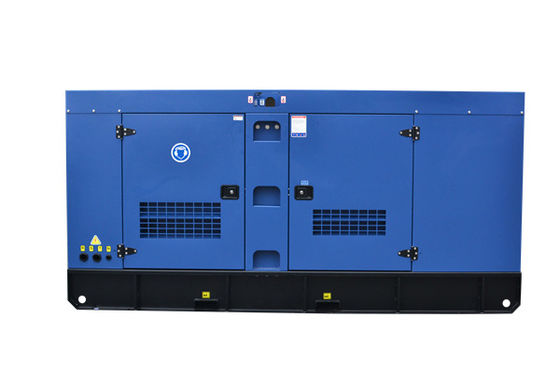

power industrial silent open 15kva 250kva FAWDE xichai diesel electric generator set
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.
| MODEL | PRIME POWER KW/KVA | STANDBY POWER KW/KVA | ENGINE MODEL | ENGINE POWER KW | STAMFORD TYPE | SIZE |
| BFA17S | 12/15 | 13.2/17 | 4D81-23D | 17 | BW-164D | 1700*880*1040 |
| BFA17 | 12/15 | 13.2/17 | 4D81-23D | 17 | BW-164D | 1400*610*1140 |
| BFA21S | 16/20 | 18/22 | 4D91-29D | 21 | BW-184E | 1900*880*1060 |
| BFA21 | 16/20 | 18/22 | 4D91-29D | 21 | BW-184E | 1400*610*1160 |
| BFA27S | 20/25 | 22/27.5 | 4D92-35D | 26 | BW-184F | 1900*880*1060 |
| BFA27 | 20/25 | 22/27.5 | 4D92-35D | 26 | BW-184F | 1400*610*1160 |
| BFA33S | 24/30 | 26/33 | 4DX21-45D | 33 | BW-184G | 2100*880*1120 |
| BFA33 | 24/30 | 26/33 | 4DX21-45D | 33 | BW-184G | 1550*610*1220 |
| BFA42S | 30/38 | 33/42 | 4DX22-50D | 37 | BW-184H | 2300*970*1200 |
| BFA42 | 30/38 | 33/42 | 4DX22-50D | 37 | BW-184H | 1800*710*1300 |
| BFA55S | 40/45 | 44/55 | 4DX23-65D | 48 | BW-224D | 2300*1000*1250 |
| BFA55 | 40/45 | 44/55 | 4DX23-65D | 48 | BW-224D | 2000*710*1350 |
| BFA77S | 56/70 | 66/77 | 4110/125Z-09D | 65 | BW-224F | 2500*1040*1200 |
| BFA77 | 56/70 | 66/77 | 4110/125Z-09D | 65 | BW-224F | 2000*710*1300 |
| BFA100S | 72/90 | 80/100 | CA4DF2-12D | 84 | BW-274C | 2900*1040*1480 |
| BFA100 | 72/90 | 80/100 | CA4DF2-12D | 84 | BW-274C | 2200*800*1580 |
| BFA113S | 80/100 | 90/113 | CA6DF2D-14D | 90 | BW-274C | 2900*1040*1480 |
| BFA113 | 80/100 | 90/113 | CA6DF2D-14D | 90 | BW-274C | 2200*800*1580 |
| BFA138S | 100/125 | 110/138 | CA6DF2-17D | 125 | BW-274D | 3100*1040*1480 |
| BFA138 | 100/125 | 110/138 | CA6DF2-17D | 125 | BW-274D | 2350*800*1580 |
| BFA165S | 120/150 | 132/165 | CA6DF2-19D | 140 | BW-274F | 3200*1040*1480 |
| BFA165 | 120/150 | 132/165 | CA6DF2-19D | 140 | BW-274F | 2500*800*1580 |
| BFA206S | 150/188 | 165/206 | CA6DL1-24D | 176 | BW-274G | 3200*1040*1480 |
| BFA206 | 150/188 | 165/206 | CA6DL1-24D | 176 | BW-274G | 2500*800*1580 |
| BFA250S | 180/225 | 200/250 | CA6DL2-27D | 205 | BW-274J | 3400*1300*1660 |
| BFA250 | 180/225 | 200/250 | CA6DL2-27D | 205 | BW-274J | 2600*1000*1760 |
| BFA275S | 200/250 | 220/275 | CA6DL2-30D | 227 | BW-274K | 3400*1300*1660 |
| BFA275 | 200/250 | 220/275 | CA6DL2-30D | 227 | BW-274K | 2600*1000*1760 |
