FPT Diesel Generator 30KVA To 563kva Soundproof Diesel Generator

1
MOQ
FPT Diesel Generator 30KVA To 563kva Soundproof Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 400/230V,220V / 380V
Speed: 1500/1800rpm
Frequency: 50/60HZ
Rated Current: Depend
Rated Power: 6kva-3000kva
Output Type: AC Single/Three Phase
Warranty: 12 Months/1000 Hours
Alternator: Stamford
Type: Silent(super Silent)or Open
Product Name: Diesel Genertor
Engine: Powered By Cummins
Controller: Deepsea/Smartgen/etc
Options: Customer's Logo,ATS,ABB/ATS/Container/Trailer,tank Capacity,Soundproof Canopy
Color: Customers' Requirement
Protection Class: IP21-23
Cooling Method: Water-cooling System
Application: Sea Shipping
High Light:

563kva Soundproof Diesel Generator

,

FPT Diesel Generator 30KVA

,

FPT Diesel Generator 563kva

Basic Infomation
Place of Origin: China
Brand Name: FPT
Certification: ISO CE
Model Number: BC110S
Payment & Shipping Terms

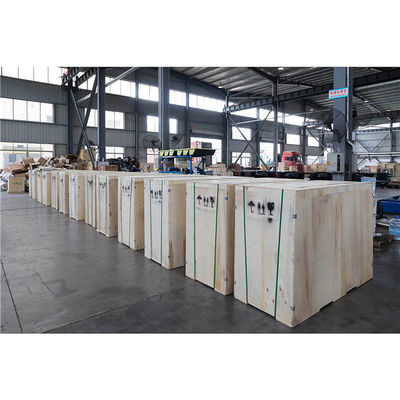

Packaging Details: Bubble Wrap or Plywood Case
Delivery Time: 30 working days
Product Description

High quality 30kva to 563kva silent and open  diesel generator prices with FPT engine

Products Features:
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.



Genset model Prime powerKW Prime Power KVA Engine Brand Engine Model Engine Power KW Alternator model
BFPT33S 24 30 FPT 50HZ S8000AM1 28 BW-184G
BFPT33 24 30 FPT 50HZ S8000AM1 28 BW-184G
BFPT41S 30 38 FPT 50HZ NEF45AM1A 42 BW-184H
BFPT41 30 38 FPT 50HZ NEF45AM1A 42 BW-184H
BFPT50S 36 45 FPT 50HZ NEF45AM1A 42 BW-224C
BFPT50S 36 45 FPT 50HZ NEF45AM1A 42 BW-224C
BFPT66S 48 60 FPT 50HZ NEF45SM1A 53 BW-224E
BFPT66 48 60 FPT 50HZ NEF45SM1A 53 BW-224E
BFPT83S 60 75 FPT 50HZ NEF45TM2A 88 BW-224F
BFPT83S 60 75 FPT 50HZ NEF45TM2A 88 BW-224F
BFPT110S 80 100 FPT 50HZ NEF45TM2A 88 BW-274C
BFPT110 80 100 FPT 50HZ NEF45TM2A 88 BW-274C
BFPT138S 100 125 FPT 50HZ NEF45TM3 107 BW-274D
BFPT138 100 125 FPT 50HZ NEF45TM3 107 BW-274D
BFPT138S 100 125 FPT 50HZ NEF67SM1 110 BW-274D
BFPT138 100 125 FPT 50HZ NEF67SM1 110 BW-274D
BFPT165S 120 150 FPT 50HZ NEF67TM3A 138 BW-274E
BFPT165 120 150 FPT 50HZ NEF67TM3A 138 BW-274E
BFPT198S 144 180 FPT 50HZ NEF67TM4 150 BW-274G
BFPT198 144 180 FPT 50HZ NEF67TM4 150 BW-274G
BFPT220S 160 200 FPT 50HZ NEF67TM7 177 BW-274H
BFPT220 160 200 FPT 50HZ NEF67TM7 177 BW-274H
BFPT275S 200 250 FPT 50HZ C87TE3* 229 BW-274K
BFPT275 200 250 FPT 50HZ C87TE3* 229 BW-274K
BFPT303S 220 275 FPT 50HZ C87TE4* 275 BK314CS
BFPT303 220 275 FPT 50HZ C87TE4* 275 BK314CS
BFPT343S 250 313 FPT 50HZ C87TE4* 275 BW-314DS
BFPT343 250 313 FPT 50HZ C87TE4* 275 BW-314DS
BFPT385S 280 350 FPT 50HZ CURSOR13TE2A 300 BK314ES
BFPT385 280 350 FPT 50HZ CURSOR13TE2A 300 BK314ES
BFPT412S 300 375 FPT 50HZ CURSOR13TE3A 352 BW-314F
BFPT412 300 375 FPT 50HZ CURSOR13TE3A 352 BW-314F
BFPT440S 320 400 FPT 50HZ CURSOR13TE3A 352 BW-314FS
BFPT440 320 400 FPT 50HZ CURSOR13TE3A 352 BW-314FS
BFPT481S 350 438 FPT 50HZ CR13TE6W 374 BW-354C
BFPT481S 350 438 FPT 50HZ CR13TE6W 374 BW-354C
BFPT550S 400 500 FPT 50HZ CR13TE7W 425 BW-354D
BFPT550 400 500 FPT 50HZ CR13TE7W 425 BW-354D
BFPT619S 450 563 FPT 50HZ CR16TE1W 505 BW-354DS
BFPT619 450 563 FPT 50HZ CR16TE1W 505 BW-354DS

FPT Diesel Generator 30KVA To 563kva Soundproof Diesel Generator 0


FPT Diesel Generator 30KVA To 563kva Soundproof Diesel Generator 1

FPT Diesel Generator 30KVA To 563kva Soundproof Diesel Generator 2



Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25


Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.



Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list that we just made,please contact us by sales07@bobig.cn
