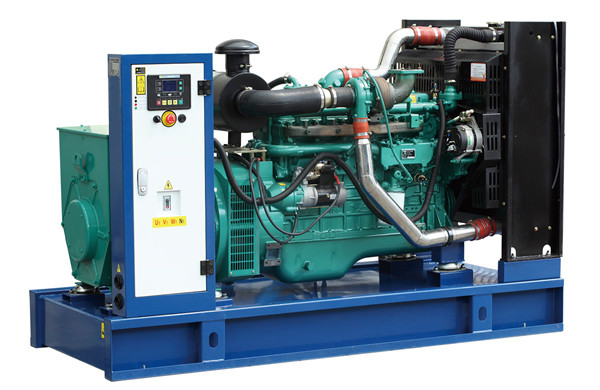

electric industrial 275kva 220kw yuchai diesel generator set silent open type
1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.
| BOBIG POWER YUCHAI DIESEL GENERATOR | ||||||||
| MODEL | BYU302 | silent type | Open type | +ATS | ||||
| Prime power (KW/KVA) | 220KW/275KVA | |||||||
| Standby power (KW/KVA) | 242KW/302KVA | |||||||
| General description | ||||||||
| 1. Engine: YC6MK350L-D20 YUCHAI | ||||||||
| 2. Alternator:BW-4D STAMFORD TYPE | ||||||||
| 3. Controller: DEEPSEA/Smartgen | ||||||||
| 4. Electronic speed control | ||||||||
| 5.:Frequency: 50/60HZ | ||||||||
| 6. Rated speed: 1500rpm/1800rpm | ||||||||
| 7. 2*12V batteries, maintennance free type. | ||||||||
| 8. 24V charge dynamo. | ||||||||
| 9. Equipped with 10-12hours operation base tank | ||||||||
| 10. DIM: silent:3700*1400*2000mm ,open: 2600*1000*2100mm | ||||||||
| 11. Nobise level: 69-72DB@7M ,if need lower noise level,please contact us. | ||||||||
| 12. Package:Plywood case | ||||||||
| 13. Radiator 50℃ max, fans are driven by belt with safety guard | ||||||||
| 14. Delivery time:10~15 working days after receiving customers' deposit | ||||||||
| 15. Equipped with industrial silencer and flexible exhaust hose. | ||||||||
| 16. Payment terms:TT,100%irrevocable L/C,tradeassurance,paypal,wester union | ||||||||
| 17. Manufacturing Standard: | ||||||||
| GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34. | ||||||||
| 18. Warranty:One year after installation/1500 running hours | ||||||||
| 19. Pakcing list:User manual of Engine, alternator, controller. | ||||||||
| 20. Weight: 3110kg | ||||||||
| 21. Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need | ||||||||
| Engine specifications: | ||||||||
| Engine model | YC6MK350L-D20 | |||||||
| Number of cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in line | |||||||
| Cycle | 4 | |||||||
| Aspiration | Turbo Aftercooled | |||||||
| Bore×Stroke(mm×mm) | 140×152 | |||||||
| Displacement (Liter) | 14 | |||||||
| Compression Ratio | 14.0:1 | |||||||
| Prime power/speed (kW/RPM) | 235/1500RPM | |||||||
| Standby power/speed (kW/RPM) | 258/1500RPM | |||||||
| Speed governor | electronic | |||||||
| Cooling system | water cooling(Aftercooled) | |||||||
| Coolant capacity (engine only) (L) | 20.8 | |||||||
| Steady speed droop (%) | 1% | |||||||
| Total lubrication system capacity (L) | 38.6 | |||||||
| Oil consumption (g/kw.h) | 0.15% of fuel consumption | |||||||
| Fuel consumption at 100% load (g/kw.h) | 232 | |||||||
| Fuel consumption at 75% load (g/kw.h) | ||||||||
| Fuel consumption at 50% load (g/kw.h) | ||||||||
| Starter motor | 24V | |||||||
| Dyanmo | 24V | |||||||
| ALTERNATOR SPECIFICATION: | ||||||||
| Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS1359 | ||||||||
| Alternator model | BW-4D | |||||||
| Exciter type | Single bearing, Brushless, Self-excited | |||||||
| Rated output prime power(KVA/KW) | 236kW | |||||||
| Rated speed | 1500 RPM | |||||||
| Rated frequency | 50 Hz | |||||||
| Phase | 3 | |||||||
| Rated voltage | 220,230,240,380,400,415v | |||||||
| Current(A) | 334 | |||||||
| Power factor | 0.8 | |||||||
| Voltage adjust range | ≥5% | |||||||
| Voltage regulation NL-FL | ≤±1% | |||||||
| Insulation grade | H | |||||||
| Protection grade | IP23 | |||||||
